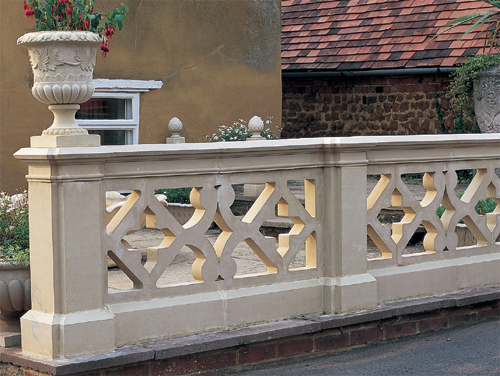

For a less formal
and more decorative alternative to balustrading, parapet screening provides
an effective solution.

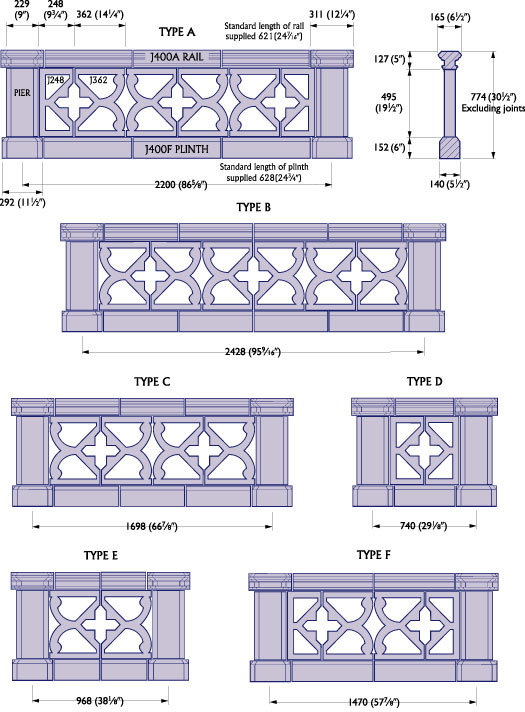

As shown in the drawings, the length of parapet unit can be varied by
using different combinations of the two basic panels J248 and J362. We
show six of the most commonly used bays (TYPES A-F). The bay dimensions
shown are from centreline to centreline of pier.

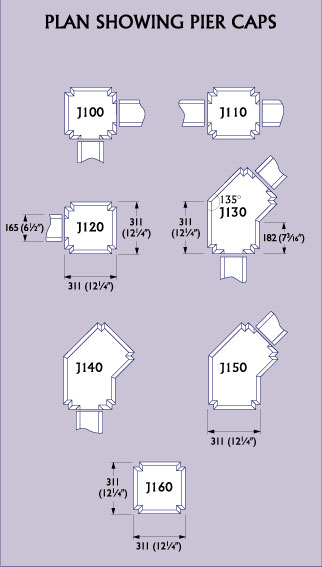

The piers are specially designed and produced for end, centre and corner
use as well as for 135° angles; so when ordering please state clearly
the number and reference of each type required.
All rails and plinths are supplied in standard lengths as indicated, cutting
to final specification to be undertaken by your installation contractor.
|
